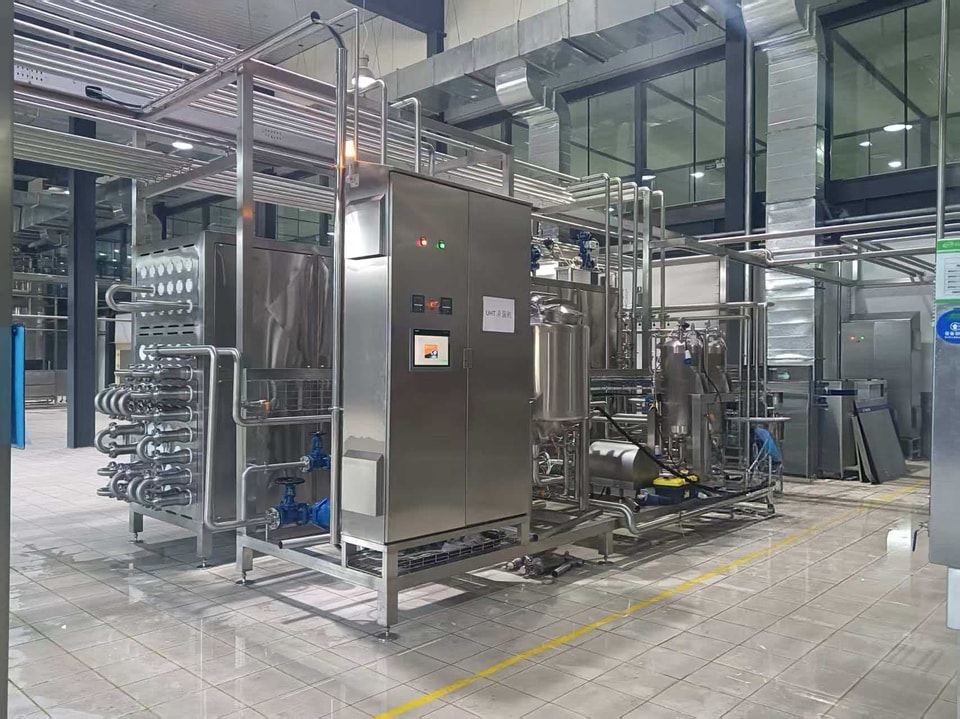

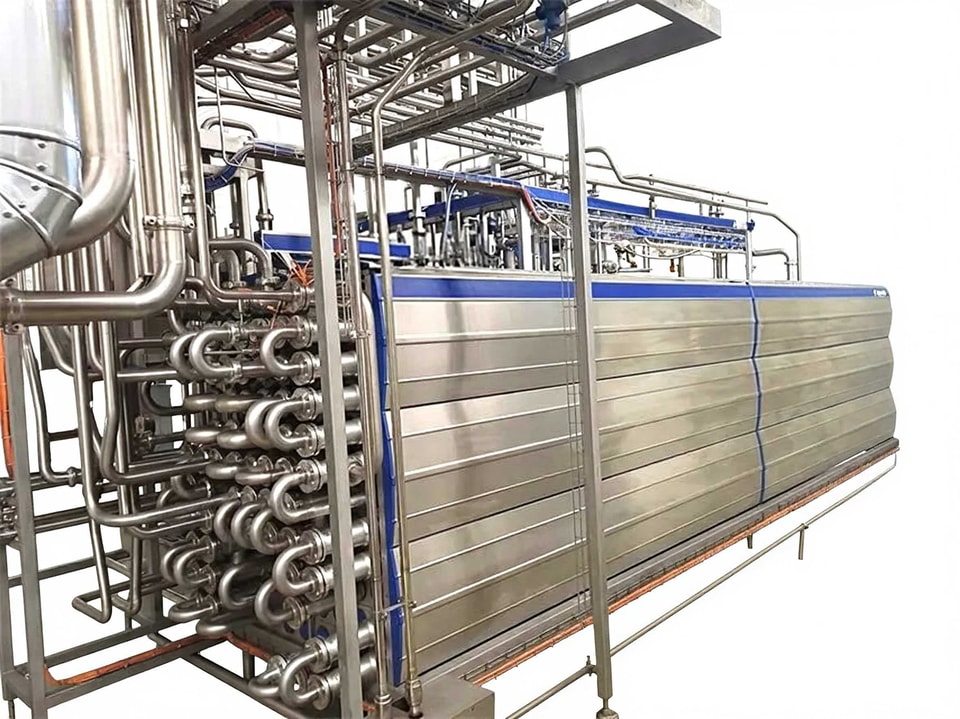

UHT Ultra-High Temperature Sterilization System
- Premium Quality Materials
- ISO Certified Production
- Custom Orders Available
Processing Capacity: 2-25 T/H
Process Parameters: 4℃ → 65℃ (Homogenization) → 137℃ (4s Holding) → 20℃
Application Fields: UHT sterilized milk, UHT flavored milk, beverages and other products
Email:anxinde2011@163.com
Tel:+86-022-29300991
Equipment Features
Equipment Features
Adopts full-process PLC and touch screen control with simple operation; it supports real-time data recording,
real-time monitoring and full traceability.
The heat exchange tube adopts imported high-quality inner tube, featuring high heat transfer efficiency and energy saving.According to product characteristics, the maximum heat recovery rate can reach up to 85%.The system can be connected with separators, homogenizers, degassing flash evaporation and other equipment,and is equipped with an independent CIP cleaning system.
Small temperature difference between material and hot water realizes gentle heating,which ensures product quality, reduces scaling and extends equipment operating time.
A pressure difference design is maintained between materials and cold/heat medium,equipped with an alarm system to eliminate the risk of product contamination.
The equipment supports automatic cleaning and full-process sterilization to ensure commercial sterility.
